（#Q16Y /Q16YS) magnetic helmet buckle
Article No.： Q16Y / Q16YS
● Q16Y Dimensions (L x W x H) : 72.69 x 65.06 x 13.73 mm
● Q16YS Dimensions (L x W x H) : 65.69 x 65.06 x 13.73 mm
● Material : PA+GF , ABS , POM , magnet
● Colour : Black body , red puller
● Webbing width: 16mm
● Static breaking load N : 800
● Opening mechanisms : downward pressing
Field of application

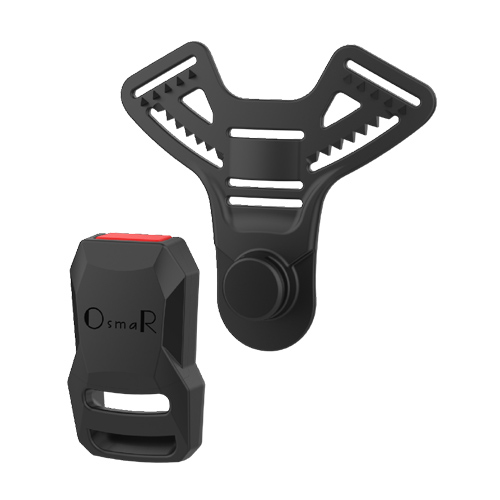

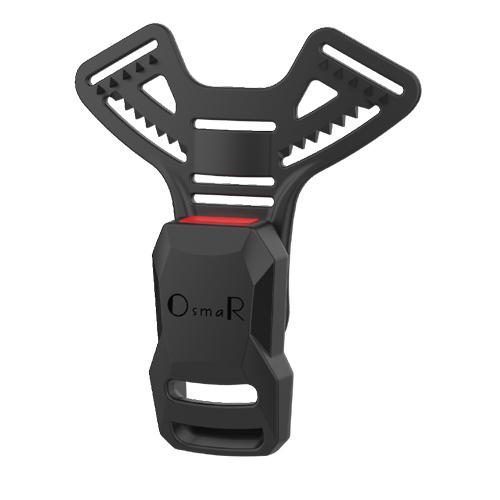

The male buckle features a unique "Y" shape design, enhancing user convenience and safety. As a result, the additional "Y" shape slider is no longer required for the helmet.

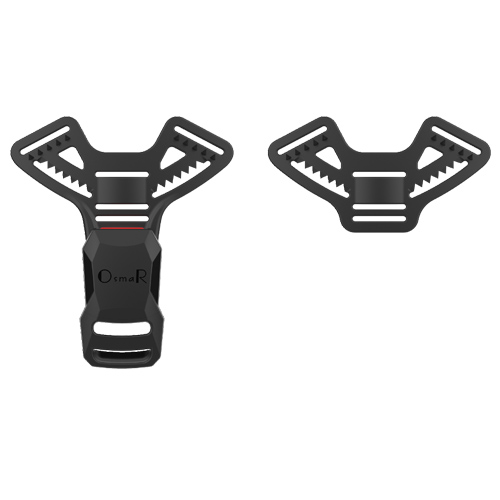

The complete set comprises of a magnetic buckle and a "Y" shaped slider.
Customization
The helmet buckles can be customized with molded logo and are available in various colors.
Safety instructions & further information
Not appropriate for use in safety-critical applications .
Only be used for safety-related applications following successful suitability testing conducted by the manufacturer.
The product specification is available for download
/uploads/userfiles/Q16Y-Q16YS-md.pdf
