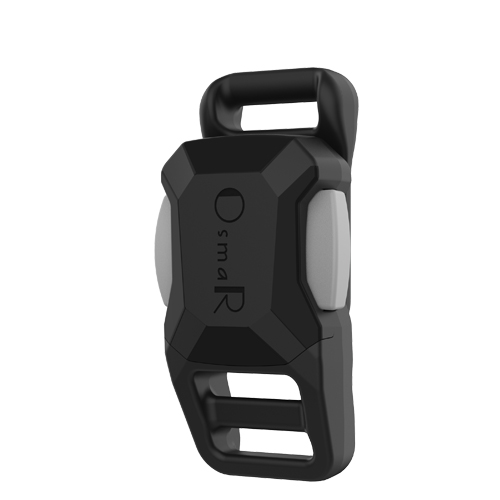

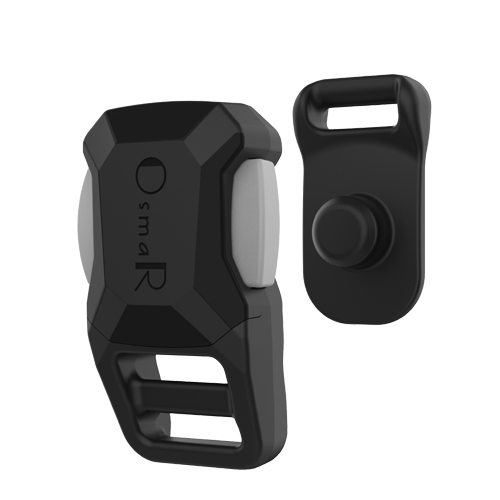

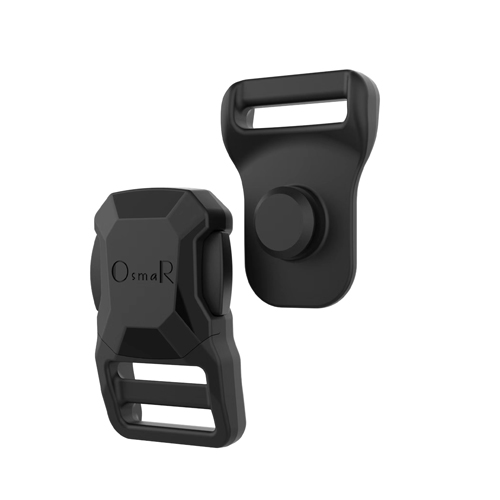

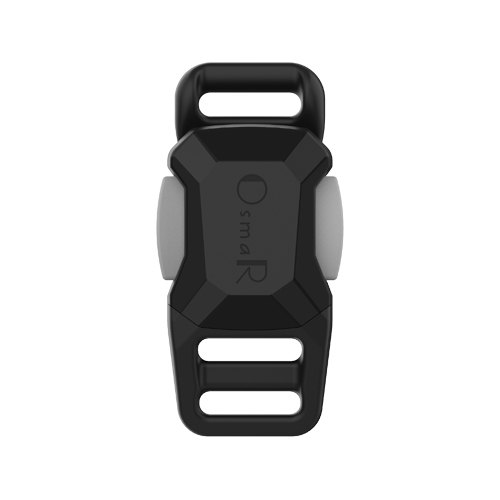

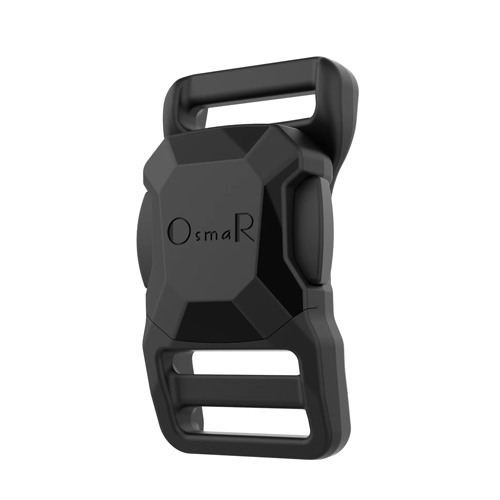

(#DP16B / DP20B / DP25B / DP31B) 2-Point Magnetic
Article No.： DP16B / DP20B / DP25B / DP31B
● Material : PA+GF , ABS , POM , magnet
● Colour : Black body
● Fitting strap width: 16mm / 20mm / 25mm /31mm
● DP16B - Static breaking load (N ): 800
● DP20B/ DP25B / DP31B - Static breaking load (N ): 1800
● Opening mechanisms : double side pressing
● Function : Easy lock/ easy release
Field of application
The series buckle comprises three different sizes: 16mm , 20mm, 25mm, and 31mm. It offers the optimal fastening technology for applications involving straps of these dimensions, such as baby carrier , sling bag , backpack , rucksack , garment and similar strap systems which require single-handed use.
Customization
The buckles can be customized with molded logo and are available in various colors.
Safety instructions & further information
Not appropriate for use in safety-critical applications .
only be used for safety-related applications following successful suitability testing conducted by the manufacturer.
The product specification is available for download.
●/uploads/userfiles/DP16B-md.pdf
●/uploads/userfiles/DP20B-md.pdf
●/uploads/userfiles/DP25B-md.pdf
●/uploads/userfiles/DP31B-md.pdf
